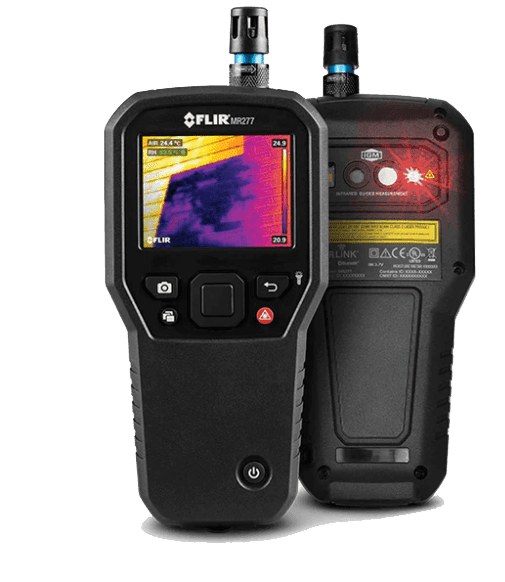

FLIR MR277 | All-in-One Moisture Meter and Thermal Imaging Camera for
FLIR MR277 | All-in-One Moisture Meter and Thermal Imaging Camera for Comprehensive Inspections
The Flir MR277 is a superpowered inspection tool comprised of both moisture reading and thermal imaging technologies.
Utilising Infrared Guided Measurement (IGM), Multi-Spectral Dynamic Imaging (MSX) and advanced enviromental sensors, this all in one device allows you to efficiently and effectively pinpoint, evaluate and document effected (and non effected) areas. Customise to your customer with the option of pinless moisture senoring for noninvasive testing or external pin probe readings for invasive measurements.
Experience the power of combined moisture detection and thermal imaging with the FLIR MR277. This advanced device combines a high-quality moisture meter with a thermal imaging camera, allowing you to identify moisture issues and visualize temperature patterns for more comprehensive inspections. Perfect for building professionals, restoration experts, and home inspectors.
Connect to external devices with METERLiNK® and use FLIR Tools® to enhance troubleshooting and reports.
• Scan large areas for moisture, air leaks,
and more with the 160 × 120 thermal camera
• Easily identify both the context and the issue;
MSX embosses physical details on thermal
images for clear interpretation
• Pinpoint the exact location of problems with
the integrated laser
• Scan for moisture with the integrated
non-invasive pinless sensor
• Capture exact measurements with an external
pin probe (included) and wide range of optional
moisture probes
• Simplify documenting issues with the
integrated digital camera
• Create a single file documenting thermal, visual,
MSX, hygrometer readings, and laser location
• Download images and data via USB cable or
upload via Bluetooth® to the FLIR Tools® App
SPECIFICATIONS
- MSX
- Embosses visual details on full resolution thermal image
- Thermal image palettes
- Iron, Rainbow, Arctic, White-Hot, Black-Hot
- Pin Moisture
- Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only
- Pin Moisture Groups
- 11 Material Groups
- Air Temperature
- Range 32 to 122°F (0 to 50°C) / Basic Accuracy ±1.1°F (±0.6°C)
- Relative Humidity
- Range 10% to 90% / Basic Accuracy 2.5% RH
- Dew Point
- Range -30°C to 50°C (-22°F to 122°F) / Basic Accuracy ±1.0°C (±1.8°F)
- Includes
- FLIR MR13 Replaceable Temperature and Relative Humidity Sensor, FLIR MR02 Standard Pin Probe, quick start guide, international USB charger, USB cable, and lanyard
IMAGING & OPTICAL
- Display Type
- QVGA (320 × 240 pixels) 2.8 in. color TFT graphical display
- Field of View [W x H]
- 57° × 44°
- Image Modes
- Thermal, Visual, MSX®
- Image Update Speed Frequency
- 9 Hz
- Imaging Detector
- FLIR Lepton microbolometer
- Laser Orientation
- Single laser pointer to center of thermal image
- MSX
- Embosses visual details on full resolution thermal image
- Sensitivity
- <150 mK
- Spectral Response
- 8 to 14µm
- Thermal image minimum focus distance
- 10 cm (4 in)
- Thermal image palettes
- Iron, Rainbow, Arctic, White-Hot, Black-Hot
- Thermal Image Resolution [W x H]
- 19200 pixels (160 × 120)
MEASUREMENT & ANALYSIS
- Air Temperature
- Range 32 to 122°F (0 to 50°C) / Basic Accuracy ±1.1°F (±0.6°C)
- Dew Point
- Range -30°C to 50°C (-22°F to 122°F) / Basic Accuracy ±1.0°C (±1.8°F)
- Image Calibration
- Automatic with manual lock scale option
- Measurement Resolution
- 0.1
- Pin Moisture
- Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only
- Pin Moisture Groups
- 11 Material Groups
- Pinless Measurement Depth
- 19 mm (0.75 in) max
- Pinless Moisture Range
- 0 to 100
- Response Time Pin Mode
- 750 ms
- Response Time Pinless
- 100 ms
COMMUNICATION & DATA STORAGE
- Saved Image File format
- Radiometric JPEG
- Stored Image Capacity
- 15000 images
POWER
- Auto Power Off
- Programmable: Off, 5, 10, 20, or 30 minutes
- Battery
- Rechargeable 3.7 V, 5400 mAh LiPo
- Continuous Run Time
- 8 hours max
- Typical Usage
- 4 work weeks
GENERAL
- Dimensions (H x W x L)
- 17.5 cm × 9.0 cm × 4.2 cm (6.9 in × 3.5 in × 1.7 in)
- Includes
- FLIR MR13 Replaceable Temperature and Relative Humidity Sensor, FLIR MR02 Standard Pin Probe, quick start guide, international USB charger, USB cable, and lanyard
- Packaging Size
- 55 × 31 × 32 cm (21.6 × 12.3 × 12.4 in)
- Weight
- 400 g (14.1 oz)
ENVIRONMENTAL & CERTIFICATIONS
- Agency Approvals
- CE, FCC Class B, RCM
- Certification Standards
- EN 61326 (EMC), EN 60825-1 Class 2 (Laser)
- Drop test
- 2 m (6.6 ft)
- Mixing Ratio
- Range 0 to 560 GPP (0.0 to 80.0 g/kg) / Basic Accuracy ±2 GPP (0.25 g/kg)
- Operating Temperature
- 0°C to 45°C
- Relative Humidity
- Range 10% to 90% / Basic Accuracy 2.5% RH
- Storage Temperature
- -20°C to 60°C
- Vapor Pressure
- Range 0.0 to 12.0 kPa / Basic Accuracy ±0.05 kPa
The FLIR MR277 is a game-changer in the field of moisture detection and thermal imaging. This all-in-one device combines the functionality of a high-quality moisture meter with a thermal imaging camera, providing professionals with a comprehensive tool for identifying moisture-related issues and conducting thorough inspections.
Integrated Moisture Meter: Equipped with a built-in moisture meter, the FLIR MR277 allows you to accurately measure moisture levels in various materials. With pinless non-invasive technology, you can quickly identify moisture hotspots and potential water damage areas. The moisture meter provides reliable moisture readings, helping you make informed decisions during inspections and restoration projects.
Advanced Thermal Imaging: The FLIR MR277 features an integrated thermal imaging camera that captures detailed thermal images. With its high-resolution sensor and FLIR's superior image quality, you can visualize and analyze temperature patterns, identifying areas of concern and potential moisture sources. The thermal imaging camera enhances your ability to spot hidden moisture issues and make more informed decisions about necessary actions.
Moisture Imaging: The FLIR MR277 combines the power of moisture detection and thermal imaging by overlaying thermal images with a color map indicating moisture levels. This unique feature, known as Moisture Imaging, provides a visual representation of moisture distribution, helping you pinpoint areas that require immediate attention. It simplifies the identification of moisture-related problems and assists in creating detailed inspection reports.
Wide Range of Applications: The FLIR MR277 is a versatile tool suitable for a wide range of applications. It is invaluable for building professionals, restoration experts, home inspectors, and anyone involved in moisture detection and inspection work. From identifying water damage in buildings to conducting moisture assessments in wood, drywall, and other materials, this device ensures thorough and reliable results.
User-Friendly Interface: Navigating through the FLIR MR277's functions and features is seamless thanks to its user-friendly interface. The device's intuitive menu system and easy-to-use controls ensure a hassle-free operation. With its ergonomic design and bright display, the FLIR MR277 is built to enhance productivity and streamline your inspection workflow.
Durable and Reliable: Built to withstand demanding environments, the FLIR MR277 is designed with durability in mind. Its rugged construction and ergonomic grip ensure a comfortable and secure hold during inspections. This device is engineered to provide years of reliable service, supporting your professional endeavors in the field.
Unlock the power of combined moisture detection and thermal imaging with the FLIR MR277. With its integrated moisture meter, advanced thermal imaging capabilities, and user-friendly interface, this all-in-one device empowers professionals to conduct comprehensive inspections, identify moisture-related issues, and make informed decisions for effective remediation.
