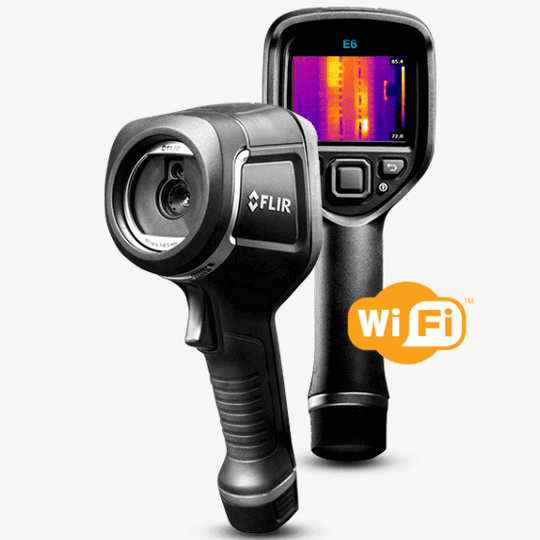

FLIR E6-XT Infrared Camera with Extended Temperature Range | Enhanced
FLIR E6-XT Infrared Camera with Extended Temperature Range | Enhanced Thermal Imaging in Extreme Conditions | Thorair
FLIR E6-XT is the perfect tool for diagnosing electrical, mechanical, and building problems, thanks to its 43.200 (240 × 180) pixel infrared detector and expanded, -20°C to 550°C (-4°F to 1022°F) temperature range. FLIR MSX® image enhancement provides extraordinary thermal imaging detail, while the built-in Wi-Fi allows users to quickly connect with the FLIR Tools® Mobile app for sharing images and sending reports easily from any location.
SPECIFICATIONS
- IR Resolution
- 240 × 180 pixels
- Thermal Sensitivity/NETD
- <0.06°C (0.11°F) / <60 mK
- Accuracy
- ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
- Field of view (FOV)
- 45° × 34°
- Image Modes
- Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
- Display
- 3.0 in. 320 × 240 color LCD
IMAGING & OPTICAL
- Color
- Black and gray
- Color Palettes
- Black & white, iron, and rainbow
- Detector Type
- Uncooled microbolometer
- Field of view (FOV)
- 45° × 34°
- FLIR Screen-EST Mode
- No
- f-number
- 1.5
- Focus
- Focus free
- Image Frequency
- 9 Hz
- Image Modes
- Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
- IR Resolution
- 240 × 180 pixels
- Minimum Focus Distance
- 0.5 m (1.6 ft.)
- Multi Spectral Dynamic Imaging (MSX)
- IR image enhanced with visible camera detail
- Picture-in-Picture
- IR area on visual image
- Spatial resolution (IFOV)
- 3.4 mrad
- Spectral Range
- 7.5–13 µm
- Thermal Sensitivity/NETD
- <0.06°C (0.11°F) / <60 mK
MEASUREMENT & ANALYSIS
- Accuracy
- ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
- Camera size (L x W x H)
- 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)
- Camera weight incl battery
- 0.575 kg (1.27 lb.)
- Isotherm
- Above alarm, below alarm
- Object Temperature Range
- –20°C to 550°C (-4°F to 1022°F) in two ranges
- Reflected apparent temperature correction
- Automatic, based on input of reflected temperature
- Set-up Commands
- Local adaptation of units, language, date and time formats
- Spot Meter
- Center spot; box with min./max.
USER INTERFACE
- Display
- 3.0 in. 320 × 240 color LCD
POWER
- Charging system
- Battery is charged inside the camera or in specific charger.
- Charging Time
- 2.5 hours to 90% capacity in camera. 2 hours in charger.
- Power Management
- Automatic shut-down
ENVIRONMENTAL & CERTIFICATIONS
- Certifications
- UL, CSA, CE, PSE and CCC
- EMC
- •WEEE 2012/19/EC •RoHs 2011/65/EC •C-Tick •EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B
- Humidity (Operating and Storage)
- IEC 60068-2-30/24 h 95% relative humidity
- Operating Temperature Range
- –15°C to 50°C (+5°F to 122°F)
- Radio Spectrum
- •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm
- Shock
- 25 g (IEC 60068-2-27)
- Storage Temperature Range
- –40°C to 70°C (–40°F to 158°F)
GENERAL
- List of Contents
- •Infrared camera •Hard transport case •Battery (inside camera) •USB cable •Power supply/charger with EU, UK, US and Australian plugs •Printed documentation
- Packaging Size
- 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)
Capture accurate thermal images in extreme temperatures with the FLIR E6-XT Infrared Camera. Designed with advanced features and an extended temperature range, this professional-grade tool delivers enhanced thermal imaging for various applications. Perfect for electrical inspections, building diagnostics, and industrial maintenance.
Experience unparalleled thermal imaging precision in extreme temperatures with the FLIR E6-XT Infrared Camera. This cutting-edge camera is specifically engineered to provide exceptional thermal imaging performance in challenging conditions, making it the ultimate tool for professionals in various industries.
Extended Temperature Range: The FLIR E6-XT boasts an extended temperature range, allowing you to confidently capture and analyze thermal images in environments with extreme heat or cold. With an extended range up to [temperature range], this camera delivers reliable results in even the harshest conditions.
High-Resolution Thermal Imaging: Equipped with a high-resolution thermal sensor, the FLIR E6-XT captures crisp and detailed thermal images, enabling you to visualize temperature variations with exceptional clarity. From identifying electrical hotspots to conducting building diagnostics, this camera empowers you to make accurate decisions based on precise thermal data.
Advanced Imaging Features: This infrared camera is packed with advanced features to enhance your thermal imaging capabilities. With multiple measurement modes, adjustable emissivity settings, and image enhancement tools, you have complete control over image analysis and data interpretation, ensuring accurate and insightful results.
Intuitive Interface and Enhanced Connectivity: The FLIR E6-XT features a user-friendly interface and a vibrant display, providing a seamless experience during image capture and analysis. The camera's intuitive controls and menu navigation simplify operation, allowing you to focus on your work without unnecessary complexities. Additionally, enhanced connectivity options enable easy transfer of images and data for further analysis or reporting.
Durable and Rugged Construction: Built to withstand the demands of challenging environments, the FLIR E6-XT is crafted with durability in mind. Its rugged design ensures reliable performance even in rugged industrial settings or demanding fieldwork. This camera is built to last, providing you with a tool you can rely on for years to come.
Versatile Applications: The FLIR E6-XT is suitable for a wide range of applications, including electrical inspections, building diagnostics, HVAC maintenance, and industrial troubleshooting. Whether you are identifying energy inefficiencies, detecting hidden moisture, or conducting predictive maintenance, this camera delivers exceptional results.
Invest in Excellence: Choose the FLIR E6-XT Infrared Camera with Extended Temperature Range to elevate your thermal imaging capabilities. With its extended temperature range, high-resolution imaging, advanced features, and rugged construction, it is the ideal tool for professionals seeking precise and reliable thermal data.
Unleash the power of accurate thermal imaging in extreme temperatures with the FLIR E6-XT Infrared Camera. Experience the difference it makes in identifying problems, optimizing performance, and ensuring safety in your industry. Invest in a camera that delivers exceptional performance and drives success. Purchase the FLIR E6-XT today and take your thermal imaging endeavours to new heights.
