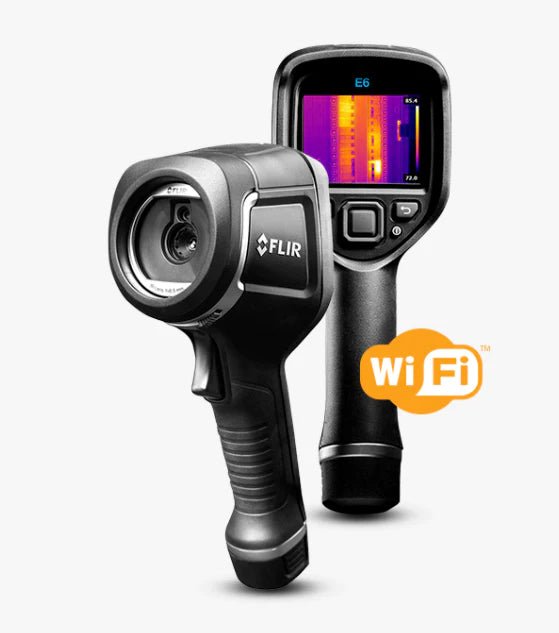

FLIR E6 Thermal Imaging Camera: Specifications and Features
The FLIR E6 is a thermal imaging camera that offers advanced features for various applications. Here are the specifications of the FLIR E6:
- IR Resolution: 160 x 120 pixels
- Thermal Sensitivity/NETD: <0.06°C at 30°C
- Temperature Range: -20°C to 250°C (-4°F to 482°F)
- Field of View: 45° x 34°
- Focus: Fixed
- Image Frequency: 9 Hz
- Spectral Range: 7.5 - 14 μm
- Display: 3.0" color LCD touchscreen
- Image Modes: IR image, visual image, picture-in-picture, MSX® (Multi-Spectral Dynamic Imaging)
- Measurement Modes: Spotmeter, box area, auto hot/cold spot, isotherm
- Image Storage: Radiometric JPEG (in camera) and standard JPEG with radiometric data (included software)
- Battery Type: Li-ion rechargeable
- Battery Life: Approximately 4 hours
- Weight: 0.575 kg (1.27 lb)
- Dimensions: 244 x 95 x 140 mm (9.6 x 3.7 x 5.5 in)
- Built-in Visual Camera: 640 x 480 pixels
- Digital Zoom: 1-4x continuous
- File Format: Radiometric JPEG, standard JPEG, 14-bit measurement data included
- MSX Enhancement: Yes
- Voice Annotation: Yes
- Warranty: 2-10 years (model dependent)
- Reporting Software: FLIR Tools
- Interfaces: USB Mini-B, METERLiNK®
Please note that specifications may vary based on the specific model or version of the FLIR E6. It's recommended to refer to the manufacturer's official documentation or website for the most accurate and up-to-date information.
